TLWY Garden Metal Palisade Fencing

Product Categories
Anping Tailong Wire Mesh Products Co., Ltd.
Contact Now

TLWY Garden Metal Palisade Fencing

Brand Name : TLWY

Model Number : TLWY--09

Place of Origin : Hebei, China

MOQ : 50 set

Price : $18.60 - $34.50/ Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 700 Set/Sets per Day

Delivery Time : 15-20 days after receiving advanced payment

Packaging Details : Pallet

Type : Trellis & Gates,Fencing,"D" profile,palisade fence,"W" profile

Frame finishing : Powder Coated,PVC Coated,Hot dip galvanized,hot dipped galvanized,Heavy Duty Galvanized

Frame material : Metal,Hot dipped galvanized steel pipe

Feature : Easily Assembled,Waterproof,Rot Proof

Metal type : Steel,Iron,Aluminum

Usage : Garden Decoration,Home Decration,Back Yard Fence,Protection

Keywords : Steel palisade fence,Iron Fence Panel,Steel Palisade Fencing

Packing : Pallet

Contact Now

hot-dipped galvanized steel products W or D Pale Galvanized Palisade security Fence Garden Europe Fencing

Palisade Fence

Palisade fence can be used for general purpose, where need the normal security and protection, which is called general purpose fence (GP fence). Another type of palisade fence is used in the areas, which needs higher security factor and protection. Compared with general purpose palisade fencing, anti-climb security palisade fencing is higher in height, thicker in thickness and w-section pales are used.

Palisade fence and gate for general purposes in corrugated and angle pales for heights up to 2.4 m, and for security purposes (SP fence) in corrugated pales for heights of 3.0 m and 3.6 m, all with posts at 2.75 m centers. We can supply all kinds of palisade fences, which cover fences between 2.4 m and 3.6 m in height with components constructed to the SP specification.

  • For SP fencing, the maximum deflection at the middle of the span under a test load of 3.5 kN shall not exceed 10 mm.
  • For GP fencing, the maximum deflection at the middle of the span under a test load of 2.5 kN shall not exceed 8 mm.

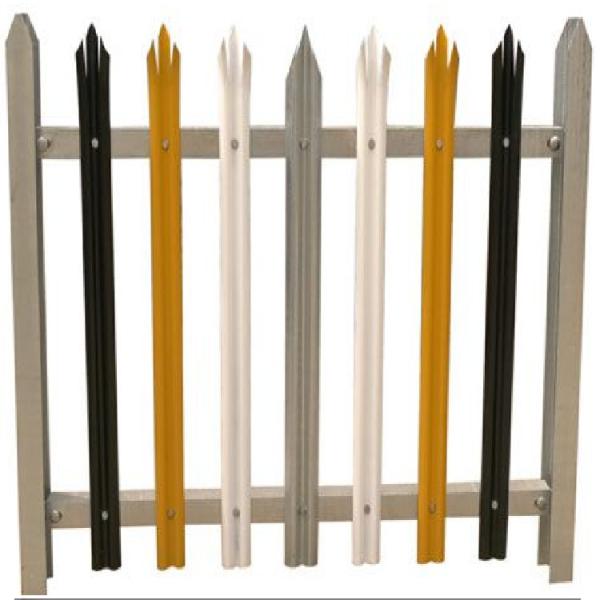

TLWY Garden Metal Palisade FencingTLWY Garden Metal Palisade Fencing

Specification Of Palisade Fence
Panel size W section Pale:70mm Angel Rail Post
Height Width Pale Thickness Qty:Pale Cross Rails Square post I Post
1.8m 2.75m 2/2.5/3mm 17pcs 40×40×4mm 60*60mm 100×55mm
2.1m 2.75m 2/2.5/3mm 17pcs 50×50×6mm 80*80mm
2.4m 2.75m 2/2.5/3mm 17pcs 100*100mm
3.0m 2.75m 2/2.5/3/3.5mm 17pcs
W section Pale:62mm
1.8m 2.75m 1.5/2/2.5mm 17pcs 40×40×4mm 60*60mm 100×55mm
2.1m 2.75m 1.5/2/2.5mm 17pcs 50×50×6mm 80*80mm
2.4m 2.75m 1.5/2/2.5mm 17pcs 100*100mm
3.0m 2.75m 1.5/2/2.5mm 17pcs
D Pale section:65mm
1.8m 2.75m 1.5/2/2.5/3mm 17pcs 40×40×4mm 60×60mm 100×55mm
2.1m 2.75m 1.5/2/2.5/3mm 17pcs 50×50×5mm 80x80mm
2.4m 2.75m 1.5/2/2.5/3mm 17pcs 100x100mm
3.0m 2.75m 1.5/2/2.5/3mm 17pcs
Surface treatment: Galvanized or galvanized then powder coating finished
Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only.

TLWY Garden Metal Palisade Fencing

Palisade fence pale type

The palisade fence pale can be divided into corrugated pale and angle pale. The corrugated pale has W type and D type with different structure surface.

  • D section pales. Working with long bolts, are designed for boundary delineation requiring low to medium security and damage resistance.
  • W section pales. with higher inherent strength and better vandal resistance, are the most used type to provide effective high security and extra protection. Fastened by short bolts, the W type palisade pales are flush against the horizon rails without flexibility.
  • Angle steel pales. Bolted or welded to horizon fence rails, are suitable for general purpose applications, such as residential estates protection.

TLWY Garden Metal Palisade FencingTLWY Garden Metal Palisade Fencing

FAQ

How about your company?

An ping Tai Long company is a direct manufacturer about 10 Years , we have rich experience of wire mesh fence products ,and have quality control department ,so please trust us ,we will be your best choice!

What is the minimum order quantity?

Usually , the minimum quantity is in a 20Ft Container, for the price is much reasonable for customers , but if you don’t need so much , it can be negotiable .If it only because you don’t trust the quality , we can send you sample first!

What is the lead time

Usually , the lead time is within 20 days we receipt of the prepayment ,if you need products urgently ,we will do our best to produce it as soon as possible ,and shipping as soon as possible ,to meet your requirement.

How to contact us?

You can click contact supplier and send your requirements to us , we have a high quality sales team ,we can help you get what you really want.
